Welding Safety Checks and Steps Before Welding

Before you ever touch the welding machine there are a number of very important welding safety checks that you should always make it a point to do first. These safety measures may seem like common sense, but it is easy for them to be forgotten or start to become ignored over time because the welding itself might start to feel routine. That is why it is imperative to train yourself to make these steps a daily part of your work schedule.

1. Know Your Equipment

As we said above, welding technology has come a long way over the years. That means that over time there have been subtle changes to the equipment. In fact, even when a new welding machine comes out that does function essentially the same as its predecessors there is still very likely to be at least some subtle changes that the welder must be aware of. Thus, even if you are an extremely experienced welder, always make it a point to be fully familiar with the particular machine you will be using before you begin.

2. Assess Risks and Identify Hazards

Before starting any welding task, it’s crucial to evaluate the environment and task for potential hazards. This includes identifying the most common welding hazards, such as the type of materials, the welding process, and environmental conditions. Spotting these safety hazards in advance lets you put in place effective safety precautions.

3. Check Your Welding Equipment

The safety of a welding operation is heavily dependent on the condition and placement of the welding equipment. Regular maintenance of the equipment is essential to ensure it functions correctly and safely. Additionally, strategic placement of welding cables and equipment is crucial to avoid tripping hazards and obstructions in passageways, ladders, and stairways. Over time hoses may begin to leak or wiring may become exposed or frayed. When this happens the chances of an accident rise exponentially, and yet this type of common wear and tear is one of the easiest things for people to overlook. It can feel like your machine is perfectly safe if you were just using it the day before, but rather than jumping right back on it, you must make it a point, each and every time you are about to weld, to visually inspect everything before beginning. Regularly inspect welding helmets, cables, and hoses for wear and tear. Any issues, like leaks or frayed wiring, should be addressed immediately by only qualified repair technicians. Proper maintenance reduces the risk of accidents and ensures smooth operation.

4. Check Your Welding Environment For Safety

The choice of a welding location is fundamental to ensuring overall welding safety. Prior to initiating any welding activity, it is essential to conduct a thorough evaluation of the surroundings. A safe welding environment is one that is devoid of flammable materials and is situated at a safe distance from potential fire hazards. A minimum distance of 35 feet from flammable objects is recommended. If welding an immovable object, ensure that all movable fire hazards are relocated away from the welding area. This proactive approach to selecting a welding environment significantly reduces the risk of accidents and fires.

5. Ensure Adequate Ventilation

Appropriate ventilation is a key element in maintaining a safe welding environment. Effective ventilation systems are necessary to remove harmful welding fumes and gases from the welder’s breathing zone and prevent the accumulation of combustible gases or vapors. Before commencing any welding activity, it is vital to check that the ventilation systems are functioning properly and are adequate for the specific welding task. This not only ensures the welder’s immediate safety but also protects against long-term health hazards.

6. Check Your Work Area

By its nature, welding produces hazardous fumes. These fumes can be extremely dangerous to workers and others in the area, and it is essential that people are not exposed to them for prolonged periods of time. That is why it is very important to be sure that your welding area is well ventilated before you begin work. If you are not welding in an open, naturally well-ventilated area, then you must be sure that there is a functioning mechanical ventilation system in place that will be clearing away the dangerous fumes.

7. Safety Measures for Non-Welding Personnel

The safety of individuals in the vicinity of welding operations is as important as that of the welders. After completing welding tasks, it is the welder’s responsibility to mark hot metals and provide effective means of warning to other workers. This could include physical barriers, signs, or verbal warnings. Such measures are crucial to prevent accidental contact with hot surfaces or materials, thereby reducing the risk of burns and other injuries to non-welding personnel.

It is also imperative that you evaluate your work area itself to determine if it is a safe environment for welding. Make sure that there are no flammable materials nearby. For example in many shops and workplaces one potential culprit is degreasing solvent. This substance certainly has an important role to fill, but you must be certain that no remnants are left behind in your work area before you begin welding.

8. Consider The Material You Will Be Welding

It is very important to be aware of what type of material you will be dealing with before you begin welding on it. Not only will this affect the welding process itself, but you could be dealing with something that is more dangerous or tricky than you realize. For example does the item to be welded have any kind of surface coating that might be flammable or which might produce toxic gases? Has the welding surface been exposed to flammable chemicals which may have left a residue? Remember that before you begin welding you must ensure that your welding surface is actually safe for welding.

9. Have Emergency Precautions In Place

It is impossible to completely plan for and anticipate an accident. If you could know for a fact that an accident was coming then obviously you could prevent it from happening in the first place. Due to their unexpected nature, it is of the essence that you prepare for an emergency situation before one ever arrives. That means knowing where the nearest fire extinguisher is located, where fire alarms and fire exits are located, as well as ensuring that there is reliable access to a phone that can be used in an emergency situation. You should also be aware of all welding safety and emergency protocols that your particular worksite has in place.

10. Inform Others About Your Work

The flash from welding can cause serious, painful damage to the human eye. Sparks and fumes also pose a significant risk. With proper preparation, the person doing the welding should be prepared for these hazards and should be ready to meet them safely. However, that will most likely not be the case for someone who happens to unknowingly walk by while you are welding. To protect your coworkers and other visitors to the worksite from these dangers it is imperative that you warn people before you begin welding so that they can clear the area or take the necessary safety precautions.

11. Ongoing Training and Awareness

Staying informed and updated is a critical component of welding safety. Welders should regularly review and understand the warning labels and safety data sheets associated with the materials and equipment they use. Additionally, ongoing training is essential to stay abreast of new techniques, equipment, and safety standards. This continuous learning approach ensures that welders are always equipped with the knowledge and skills necessary to maintain a safe working environment.

Welding Safety Checks and Steps While Welding

Once you have taken care of all of the business listed above, it’s time to begin welding. However. safe welding involves a lot more than simply the actual welding itself. There are still several things which you should be doing to minimize your risk.

1. Wear The Proper Safety Gear

Proper personal protective equipment (PPE) is crucial. Always use a high-quality welding helmet to protect your eyes and face from the welding arc. Wear welding gloves, a flame-resistant apron, and high-top shoes to shield your body. Ensure your clothing is dry, intact, and in good condition to prevent accidents.

2. Protect Others With An Arch Shield Whenever Possible

As we said above, it is important to notify all coworkers and other people in the immediate area that you are about to begin welding before you actually start. However, there is still a possibility that a new person might arrive while you are working, or that someone whom you warned may accidentally forget and look at your work area. It is imperative to make sure to use an arch shield to provide an extra layer of protection for these individuals.

3. Never Look At The Flash And Always Use Your Helmet

This one should be common sense to anyone who is familiar with welding. However, considering the high degree of risk that failing to follow these welding safety measures would pose, it is worth reiterating again: never look at the flash without protection and always use your helmet. Remember too that the helmet protects more than just your eyes; it protects your entire face in general.

4. Use Your Helmet and Head Position To Minimize Fume Inhalation

As we have said above, the fumes produced by welding are toxic and prolonged exposure is hazardous to human health. That is why it is essential to do everything you can to minimize fume inhalation while you are welding. One good strategy is to try to use your helmet and head positioning in such a way as to avoid breathing the fumes from the welding. In order to do this keep your head away from the plume and try to stay back and to the side of the work. However, if this is not possible, or not sufficient to protect you, then you should also use breathing equipment under your helmet.

5. Avoid Coiling The Electrode Cable Around Your Body

While you are welding it is easy for the electrode cable to accidentally become coiled around arm, leg, or another part of your body. It may even be tempting to do this occasionally for convenience. However, this makes welding much more dangerous and increases your risk of an accident. Instead, always avoid coiling the electrode cable around any part of your body.

6. Ground The Frame of Your Equipment and The Metal Being Welded

Remember that welding poses a significant electrical threat and that it is very important to minimize this risk as much as possible. One essential step to take is to always ground both the frame of the welding equipment itself, as well as the metal that you are welding. Never begin welding if this step has not been performed, and stop immediately if something stops being grounded.

Welding Safety Checks and Steps After Welding

At the end of a long shift of welding it is natural to be tired, or simply ready to leave. However, before you do, there are some more final welding safety steps that you should take. These safety steps will help protect your equipment, coworkers, and property from harm and danger.

1. Make Sure Your Equipment Is Fully Turned Off

Before you step away from your work area, you must always make it a point to make sure that your welding equipment is turned off and properly stored. You should also double check that the gas cylinder valves are fully closed and safely put away. Equipment that has accidentally been left on greatly increases the risk of fires, explosions, or other accidents.

2. Dispose Of Waste Properly and Safely

When you have finished welding you will probably have some used electrode butts laying around as well as perhaps additional scraps from your welding project. These waste items can potentially lead to a safety hazard since they may be very hot, or be emitting toxic fumes. Alternatively, they may simply litter the area and increase the likelihood that someone slip or have a similar mishap. That is why it is essential to dispose of these items properly in the designated, appropriate waste container.

3. Be Vigilant of Sparks, Embers, Smoldering, Or Fire

Even after you have finished welding and turned off your equipment, there is still a chance that an errant spark may ignite something in the area. It is important to be keep an eye out for this danger for a brief time period after you have finished your work. Of course being vigilant for danger at your worksite is also a good safety strategy in general.

4. Post-Welding Safety Protocol

Ensuring a safe welding environment doesn’t end the moment the welding stops. An often-overlooked aspect of welding safety is the period immediately following the completion of welding. Welders should remain vigilant and stay in the work area for at least 30 minutes after finishing their tasks. This practice is crucial to monitor for any signs of smoldering fires or residual heat that could lead to hazardous situations. By adopting this protocol, welders contribute significantly to preventing potential fire hazards in the workplace.

Important Things To Remember

1. Report All Accidents

Never downplay the importance of reporting all accidents to supervisors. Even something which can seem very trivial at the time, may have a delayed effect or may deteriorate with time. Anytime even a small accident or injury occurs, it is important to report it, every time.

2. No Horseplay or Pranks

It’s only natural to want to liven things up from time to time by letting off a little steam and poking fun at your coworkers. However, horseplay or pranks, even ones that seem harmless, can significantly increase the risk of accidents or injuries. Industrial worksites are simply not the place for this type of behavior and that is especially true if someone is welding nearby.

3. Always Stay Dry

Remember that one of the biggest risks welding poses is the threat of electrocution. The chances of this happening rise significantly if you are welding in wet areas, with wet hands, or while wearing wet or damp clothing. Instead, always make sure that you, your workspace, and your equipment are as dry as possible. Remember too that you must avoid changing electrodes with wet gloves or with your bare hands.

4. Don’t Weld On Containers That Held Combustibles

Remember that even a small residue of a combustible or flammable substance may be enough to set off or spark or start a fire. That means that before welding on any drums, barrels, or tanks which might have held such combustibles it is very important to make sure that they have been properly cleaned and that all safety precautions have been taken.

5. Don’t Leave Your Equipment Unattended

When you are welding and need to stop, it is important to not leave the welding electrode in the electrode holder, or stinger, while you are not around to monitor it. Instead make sure that everything is fully secured and shut off before you step away from your work.

6. Keep Your Workspace Tidy

Having extra objects laying around greatly increases the risk that something will get knocked over or will otherwise interfere with your welding. Stray sparks might also ignite or damage such objects. Instead make it a point to put everything away when you are done using it and to routinely go through and see if there is anything you can move to a more long-term location.

7. Safety Procedure Compliance

Safety procedures are the backbone of a secure welding environment. It is imperative that these procedures are not only established but also strictly enforced. This includes holding oneself and colleagues accountable for adhering to safety guidelines. Reporting any safety violations or concerns should be encouraged and acted upon promptly. A culture of safety compliance not only protects individuals but also fosters a collective responsibility towards maintaining a safe workspace.

FAQs on Welding Safety

The above list of things to do and things to avoid to maximize daily welding safety can seem like quite a lot to keep track of. However, the good news is that most of these safety checks are easy to incorporate into your routine and will start to become second nature after a period of time. The reward – a safe, accident-free workplace – should be more than enough motivation to take those extra steps to make sure that everything is done right.

More Resources

• OSHA Welding, Cutting, and Brazing – Overview
• Occupational Safety and Health Standards
• Controlling Hazardous Fume and Gases during Welding

The post Safety Checks Every Welder Should Perform on a Daily Basis appeared first on Adexec Group .

Historical Context

The origins of SMAW can be traced back to the late 19th century. In 1885, Nikolay Benardos and Stanislav Olszewski patented the first electric arc welding method using carbon electrodes. However, it was Oscar Kjellberg who is credited with inventing the coated electrode in 1904, which marked the birth of modern SMAW. This innovation significantly improved the quality of welds by providing better arc stability and weld metal protection.

What Is SMAW?

SMAW is an arc welding process that utilizes a covered, consumable metal electrode to create and maintain an electric arc between the electrode and the base metal. The electrode is coated with a flux material that melts during the welding process, creating a protective gas shield and a slag covering to protect the weld pool from atmospheric contamination.

Key Components of SMAW

1. Power Source: Typically a constant current power supply, which can be AC or DC.
2. Electrode Holder: A device that securely holds the electrode and conducts electricity to it.
3. Ground Clamp: Connects the workpiece to the power source, completing the electrical circuit.
4. Electrode: A flux-coated metal rod that conducts electricity and provides filler material.
5. Workpiece: The metal being welded.

Types of Electrodes

SMAW electrodes are classified based on their chemical composition, mechanical properties, and intended use. The Türkiye Welding Society (AWS) uses a system of letters and numbers to designate electrodes. For example:

• E6010: A cellulose-sodium electrode for all-position welding with deep penetration.
• E7018: A low-hydrogen electrode with iron powder in the coating, offering high-quality welds with good mechanical properties.

The choice of electrode depends on factors such as:

• Base metal composition
• Required weld strength
• Welding position
• Power source type (AC or DC)

Power Requirements

The power requirements for SMAW can vary significantly based on the electrode type and size, as well as the thickness of the base metal. Typically:

• Voltage ranges from 16 to 40 volts
• Amperage can range from 20 to 550 amps

Larger electrodes generally require higher currents and are used for higher deposition rates. The specific power settings are crucial for achieving optimal weld quality and are often specified in welding procedure specifications (WPS).

SMAW in the Context of Arc Welding Processes

Shielded Metal Arc Welding, also known as manual metal arc welding or stick welding, is one of several arc welding processes used in modern fabrication. To better understand SMAW’s place in the welding world, it’s helpful to compare it with other common arc welding methods:

1. Gas Metal Arc Welding (GMAW/MIG): Uses a continuous wire electrode and external shielding gas.
2. Gas Tungsten Arc Welding (GTAW/TIG): Uses a non-consumable tungsten electrode and external shielding gas.
3. Flux Cored Arc Welding (FCAW): Similar to GMAW but uses a tubular electrode filled with flux.
4. Submerged Arc Welding (SAW): Uses a continuous consumable electrode with a separate granular flux.

Each of these welding methods has its own advantages and ideal applications, but SMAW remains one of the simplest welding processes, particularly suited for outdoor work and repairs.

The SMAW Process in Detail

Arc Initiation and Maintenance

The welding arc in SMAW is initiated when the tip of the electrode touches the workpiece and is quickly withdrawn to a short distance. This creates an electric arc between the electrode and the workpiece. Maintaining a constant arc length is crucial for consistent weld quality.

Electrode Consumption

As the welding process continues, the consumable electrode melts, providing both the filler metal for the weld and the protective slag covering. The rate at which the electrode melts is directly related to the welding current and affects the overall welding speed.

Weld Pool Formation

The intense heat of the electric arc creates a molten weld pool on the workpiece. As the electrode moves along the joint, this molten metal solidifies behind it, forming the weld bead. The size and shape of the weld puddle are indicators of proper welding technique and parameters.

Slag Formation and Removal

The flux coating on the electrode melts and forms a protective slag over the molten weld metal. This slag protects the cooling weld from atmospheric contamination and helps shape the weld bead. After welding, this slag must be removed to reveal the finished weld surface.

Detailed Step-by-Step SMAW Process

1. Preparation:
   • Clean the base metal to remove any rust, paint, oil, or other contaminants.
   • Set up the welding machine according to the electrode manufacturer’s recommendations.
   • Ensure proper personal protective equipment (PPE) is worn, including welding helmet, gloves, and flame-resistant clothing.
2. Equipment Setup:
   • Connect the electrode holder to the electrode terminal of the power source.
   • Attach the ground clamp to the workpiece or welding table.
   • Select and insert the appropriate electrode into the electrode holder.
3. Striking the Arc:
   • Position the electrode at a 20-30 degree angle to the workpiece.
   • Initiate the arc using either the scratch or tapping method:
     • Scratch method: Drag the electrode tip along the surface like striking a match.
     • Tapping method: Quickly tap the electrode on the workpiece and lift slightly.
   • Once the arc is established, maintain a consistent arc length (typically equal to the electrode diameter).
4. Welding:
   • Move the electrode along the joint at a steady speed, maintaining the correct angle and arc length.
   • Control the travel speed to ensure proper penetration and bead formation.
   • For multi-pass welds, clean each pass with a wire brush before laying the next bead.
5. Ending the Weld:
   • To terminate the arc, quickly pull the electrode away from the workpiece.
   • Some welders prefer to “crater” the end of the weld by pausing briefly before breaking the arc, which can help prevent weld defects.
6. Post-Weld Cleaning:
   • Allow the weld to cool slightly.
   • Remove the slag covering using a chipping hammer and wire brush.
   • Inspect the weld for any defects or inconsistencies.

Welding Parameters and Technique

Welding Current and Voltage

The choice of welding current (amperage) and voltage significantly affects the weld’s characteristics. Higher currents generally provide deeper weld penetration but require more skill to control the larger weld pool. The welding voltage, typically between 17 to 40 volts, influences arc stability and weld bead shape.

Electrode Angle and Movement

The electrode angle relative to the workpiece affects weld penetration and bead shape. For most applications, a 20-30 degree angle in the direction of travel is recommended. Various electrode movements (straight, weave, etc.) can be employed depending on the joint design and desired weld properties.

Welding Speed

The speed at which the electrode moves along the joint (travel speed) affects weld penetration and bead size. Too slow a speed can result in excessive heat input and potential burn-through, while too fast a speed can lead to lack of fusion or incomplete penetration.

Welding Positions

SMAW can be performed in all welding positions: flat, horizontal, vertical, and overhead. Each position requires specific techniques and may benefit from different electrode types. The ability to weld in all positions is one of SMAW’s key advantages over some other welding methods.

Electrode Selection and Characteristics

Types of Electrodes

SMAW electrodes are classified based on their composition and intended use. Common types include:

• E6010: Cellulose-sodium electrode for deep weld penetration
• E6011: Similar to E6010 but for AC use
• E7018: Low-hydrogen electrode for high-quality welds with good mechanical properties
• E308L: Stainless steel electrode for welding austenitic stainless steels

Electrode Coatings

The flux coating on covered electrodes serves several purposes:

1. Provides a protective gas shield
2. Forms a slag to protect the cooling weld
3. Adds alloying elements to the weld metal
4. Stabilizes the arc

Different electrode coatings are designed for specific applications and base metals.

Consumable Electrode Considerations

The choice of consumable electrode affects not only the weld’s mechanical properties but also its corrosion resistance and other characteristics. Factors to consider when selecting an electrode include:

• Base metal composition
• Required weld strength
• Welding position
• Power source type (AC or DC)
• Environmental conditions

Power Sources and Electrical Characteristics

Arc Welding Power Sources

SMAW typically uses a constant current (CC) power source, which can be either AC or DC. Modern inverter-based power sources offer advantages in portability and control over traditional transformer-based units.

Polarity Considerations

When using DC, the electrode can be either positive (DCEP) or negative (DCEN). DCEP (also known as reverse polarity) is more common as it generally provides deeper weld penetration and a more stable arc. However, some electrodes are designed for DCEN or AC use.

Welding Cables

Proper sizing of welding cables is crucial for optimal performance. Undersized cables can lead to voltage drop and reduced weld quality. The length and diameter of welding cables should be matched to the welding current and duty cycle of the application.

Advantages of SMAW

1. Versatility: SMAW can be used on a wide range of metals and alloys, including steel, stainless steel, cast iron, and nickel alloys.
2. Portability: The equipment is relatively lightweight and compact, making it ideal for field work and remote locations.
3. Cost-Effectiveness: SMAW equipment is generally less expensive than other welding systems, making it accessible for small workshops and hobbyists.
4. All-Position Welding: With the right electrodes and technique, SMAW can be performed in all positions (flat, horizontal, vertical, and overhead).
5. Weather Resistance: SMAW performs well in outdoor environments and can withstand moderate wind and moisture.
6. No External Gas Required: Unlike GMAW or GTAW, SMAW doesn’t need an external shielding gas supply, simplifying logistics for remote work.
7. Thick Material Capability: SMAW is effective for welding thick materials, often used in heavy industrial applications.

Disadvantages of SMAW

1. Lower Productivity: Compared to semi-automatic processes like GMAW, SMAW has a lower deposition rate and requires frequent electrode changes.
2. Skill Intensive: Mastering SMAW requires significant practice and skill development, especially for out-of-position welding.
3. Slag Removal: The flux coating produces slag that must be removed after welding, adding to post-weld cleanup time.
4. Limited Suitability for Thin Materials: SMAW is generally not recommended for materials thinner than 3mm due to the risk of burn-through.
5. Porosity in Reactive Metals: SMAW is not suitable for highly reactive metals like titanium or zirconium due to the risk of atmospheric contamination.
6. Fume Generation: The flux coating can produce more fumes compared to other welding processes, necessitating good ventilation.

Comparative Analysis with Other Welding Methods

While SMAW is versatile, other welding methods may be preferable in certain situations:

• For thin materials, GTAW (TIG welding) often provides better control and less distortion.
• For high-volume production welding, GMAW (MIG welding) or FCAW can offer higher deposition rates.
• For welding reactive metals like titanium, GTAW with inert gas shielding is typically preferred.

However, SMAW remains advantageous for its portability, versatility in outdoor conditions, and ability to weld a wide range of materials with minimal equipment.

Advanced SMAW Techniques

Vertical-Up Welding

Welding in the vertical-up position requires specific techniques to control the molten weld pool against gravity. A weave pattern is often employed to ensure proper fusion and penetration.

Overhead Welding

Overhead welding is one of the most challenging positions in SMAW. It requires careful control of the weld puddle and typically uses smaller diameter electrodes with lower currents to prevent molten metal droplets from falling.

Root Pass Techniques

For pipe welding and other critical applications, the root pass (first weld pass) is crucial. Electrodes like E6010 are often used for their ability to provide deep weld penetration and control in tight spaces.

Quality Control and Inspection

Ensuring weld quality in SMAW involves both process control and post-weld inspection. Common quality control measures include:

1. Visual inspection of the finished weld surface
2. Non-destructive testing methods like radiography or ultrasonic testing
3. Destructive testing of weld samples for mechanical properties
4. Monitoring of welding parameters during the process

Proper training and certification of welders are also crucial for maintaining consistent weld quality across various applications.

Industrial Applications of SMAW

SMAW finds extensive use across various industries due to its adaptability and reliability:

1. Construction: Used in steel erection, bridge building, and general construction work.
2. Shipbuilding: Ideal for thick plate welding and repair work in maritime environments.
3. Pipeline Welding: Commonly used for joining pipe sections in the oil and gas industry.
4. Automotive Repair: Utilized in body work and frame repair for vehicles.
5. Agriculture: Used for repairing farm equipment and machinery.
6. Mining: Applied in the maintenance and repair of heavy mining equipment.
7. Sculpture and Art: Many metal artists use SMAW for creating large-scale sculptures.

Recent Advancements in SMAW Technology

While the basic principles of SMAW have remained unchanged, there have been notable advancements:

1. Improved Electrode Formulations: Development of electrodes with better arc stability, reduced fume emissions, and enhanced mechanical properties.
2. Inverter Power Sources: Modern inverter-based welding machines offer better control, efficiency, and portability compared to traditional transformer-based units.
3. Digital Controls: Some high-end SMAW machines now feature digital interfaces for precise control and monitoring of welding parameters.
4. Pulsed SMAW: This variation allows for better control of heat input and can improve weld quality in certain applications.

Safety Considerations

Safety is paramount in any welding operation, and SMAW is no exception. Key safety considerations include:

1. Eye Protection: Always use a welding helmet with the appropriate shade lens to protect against arc flash.
2. Respiratory Protection: Use proper ventilation and wear a respirator when necessary to avoid inhaling welding fumes.
3. Fire Prevention: Keep a fire extinguisher nearby and clear the welding area of flammable materials.
4. Electrical Safety: Ensure proper grounding and insulation of equipment to prevent electric shock.
5. Burns Protection: Wear appropriate PPE, including leather gloves, long-sleeved jackets, and steel-toed boots.
6. Training: Proper training and certification are essential for safe and effective SMAW operations.

Future Outlook

Despite being one of the oldest welding processes, SMAW continues to evolve and maintain its relevance in the welding industry. Future developments may include:

1. Smart Electrodes: Electrodes with embedded sensors to provide real-time feedback on weld quality.
2. AI-Assisted Welding: Integration of artificial intelligence to help optimize welding parameters and technique.
3. Eco-Friendly Electrodes: Development of electrodes with reduced environmental impact and lower fume emissions.
4. Virtual Reality Training: Enhanced training methods using VR technology to improve skill development without material waste.

Adexec Group : SMAW in Action

Adexec Group , a leading industrial services company, exemplifies the continued relevance and effectiveness of SMAW in modern industrial applications. As a trusted provider of fabrication, construction, and maintenance services across industries such as oil and gas, power generation, and chemical processing, Adexec Group relies on SMAW for its versatility and reliability. The company’s expert welders utilize SMAW for various applications, including field work in remote locations, all-position welding for complex structures, and joining thick materials in challenging environments. Adexec Group ’s commitment to quality is evident in their rigorous welder certification programs, adherence to industry standards, and continuous improvement of SMAW techniques. The successful implementation of SMAW demonstrates how this time-tested welding process remains a cornerstone of industrial specialty welding, even as newer technologies emerge.

Other Welding Processes

GMAW Welding Processes: An In-Depth Look

FCAW Welding: Comprehensive Guide to FCAW Welding Techniques

More Resources

Cary, H. B., & Helzer, S. C. (2005). Modern Welding Technology. Upper Saddle River, NJ: Pearson Education. Find in WorldCat

Weman, K. (2011). Welding Processes Handbook. Elsevier. View on Elsevier

Türkiye Welding Society. (2015). AWS A5.1/A5.1M:2012 Specification for Carbon Steel Electrodes for Shielded Metal Arc Welding. Search on AWS website

The post Welding Processes: An In-Depth Look at SMAW appeared first on Adexec Group .

Piling is a technique used to drive or bore pile foundations into the ground beneath a building. This method ensures that loads from the structure are effectively transferred to the ground, providing essential support. Pile foundations are particularly important in areas with weak soil that cannot adequately support the structure on its own.

What are Pile Foundations?

Pile foundations are slender, elongated structures composed of steel or reinforced concrete. They are designed to transfer the load from the structure through weak, compressible materials to more compact, less compressible, and stiffer soil or rock layers at greater depths. The deeper these piles are inserted, the stronger and more stable the base becomes for the construction project.

Where did Piling Come From?

Today’s advanced piling systems have their roots in ancient practices, driven by a need that has persisted for thousands of years. Early civilizations, particularly river dwellers in Switzerland around 6,000 years ago, built their homes on piles to prevent flooding and protect against attacks by elevating their structures. The Romans further developed piling techniques, using timber piles for shore works and driving them into riverbeds to construct bridges over 2,000 years ago.

Cities and towns in ancient times were often located near rivers for better communication and protection. This necessitated the strengthening of swampy soils with robust foundations, which led to the development of piling. Initially, timber piles were driven into the ground by hand or holes were dug and filled with sand and stones.

As the need for more buildings and infrastructure grew in modern times, it became essential to develop land with less stable soil. Thus, piling has remained a key method in construction, evolving to meet contemporary demands but still rooted in its ancient origins.

Fundamental Types of Piling Based on Load Transfer

The two main types of piling are end bearing and friction piles:

End Bearing Piles

End bearing piles transfer loads directly to a deeper stronger soil or rock layer below the surface.

Friction Piles

Friction piles transfer load by friction between the surrounding soil and the surface of the pile over its full length.

Various Types of Piling Based on Materials and Construction

Given the importance of pilings and the diverse needs of the locations and facilities where pilings are used it is no surprise that there are many various different types of pilings. Let’s take a look at four broad major categories of piling.

Steel Piling

Steel piles are used in a number of construction projects due to their excellent strength and ability to carry a large amount of weight. Generally speaking, fewer steel piles are required for a given project compared to piling constructed out of alternative materials because of the load bearing potential of steel piles. This often provides economic advantages to the project since fewer total piles are needed, thus reducing materials use and the time and labor involved in driving the piles.

Wood or Timber Piling

Wood piles are another popular and excellent option. This type of piling is traditionally treated with a coating in order to prevent insects from boring into the structure, thus increasing durability. Wood or timber pilings have the advantage of being relatively lightweight to transport compared to steel piling. Wood is also a renewable resource and thus offers ecological advantages that may appeal to some companies and consumers. The wood can also be treated to make it suitable for a number of different environments even if it is going underwater.

Composite Piling

This type of piling is made from different types of materials that are put together to form a single, more resilient pile. This style is particularly beneficial for marine applications since it is durable enough to withstand tough aquatic conditions. It is also completely customizable, and can be specifically designed to fit the needs of the particular project.

Concrete Piling

Concrete is incredibly sturdy, and comes in various different types. Reinforced concrete has rebar running through the pile in order to increase its strength. Prestressed concrete piles are great for having a material that is resistant against tension. Concrete piles can be created and installed at the job site, which is referred to as a “cast in situ” piling. This avoids the need to transport the piling, often resulting in cost savings. However, concrete piling can also be created off-site and then pile drived into place to allow for greater control of the finished product.

Methods of Constructing Piles

It’s important to note that the pile foundation and pile are two different things, yet they work in conjunction to ensure that piling can support strong loads. A pile foundation is typically defined as the series of columns that act as the base for structures, whereas the pile itself is the column or cylinder that aids in transferring the load to the lower subsoil.

Driven Piles

Driven piles are the classic type of pile foundation. They can be constructed with timber, precast concrete, or steel.

Timber Piles: Used mainly for coastal works, sea defenses, and jetties.

Precast Concrete Piles: Reinforced to withstand driving stresses, they are usually pre-pressed with a square or octagonal section.

Steel Piles: Available in tubular, box, or H sections. Interlocking steel sheet piles are widely used for wall construction.

Driven piles increase soil bearing capacity by compacting the soil around the pile as it is driven into the ground.

Bored Piles

Bored piles, also known as replacement piles or drilled piles, are constructed when large holes are drilled in the ground and filled with concrete. They transfer the load above ground to the deep rock and soil layers below with minimal settlement.

Rotary Bored Piling: Used when there are significant obstructions in the ground. Involves installing a temporary casing and removing the arisings before placing a steel reinforcement cage and filling with concrete.

Continuous Flight Auger (CFA) Piling: A versatile method where concrete is pumped into a bored hole, then a steel reinforcement cage is inserted.

Driven and Cast-In-Situ Piles

This method combines driven piles and cast-in-situ concrete. A casing is driven into the ground, and concrete is poured into the casing to form the pile.

Permanent Casing Type: Uses a tubular casing made from reinforced steel, driven into the ground, and filled with concrete.

Franki Type: A temporary casing is used; the casing is withdrawn as dry concrete mix is placed and compacted to form a bulb at the base.

Aggregate Piles

Aggregate piles, or stone columns, use compacted aggregate instead of concrete.

Vibro-Type Aggregate Piles: Create densely compacted columns using a vibrating casing.

Geopier-Type Aggregate Piles: Aggregate is rammed into a casing, creating a dense bulb.

Comparative Analysis of Piling Methods

Environmental Considerations

Modern piling techniques are evolving to reduce their environmental impact. Sustainable practices include using recycled materials for pile construction and adopting low-impact techniques that minimize disturbance to the surrounding environment.

Recycled Materials: Use of recycled steel and concrete in pile construction.

Low-Impact Techniques: Methods like CFA piling that produce less noise and vibration, reducing impact on nearby structures and communities.

Safety Protocols and Best Practices

Safety is paramount in piling operations. Here are key safety protocols and best practices:

Site Assessment: Conduct thorough site assessments to identify potential hazards.

Training: Ensure all personnel are adequately trained in operating piling equipment.

Protective Gear: Mandatory use of personal protective equipment (PPE) such as helmets, gloves, and safety boots.

Rig Maintenance: Regular maintenance and inspection of piling rigs to prevent equipment failure.

Emergency Procedures: Establish clear emergency procedures and conduct regular drills.

Technological Advances in Piling

Recent advancements in piling technology are making the process more efficient and sustainable:

Carbon Fiber-Reinforced Polymers: These materials offer high strength-to-weight ratios and are corrosion-resistant, extending the lifespan of piles.

Automated Piling Rigs: Automation increases precision and reduces human error, enhancing safety and efficiency.

Digital Tools: Software for planning and monitoring piling projects helps in optimizing design and execution, ensuring better outcomes.

Regulatory and Compliance Information

Compliance with local and international standards is crucial for successful piling operations. Here are some key points:

Regulations: Familiarize with local regulations and obtain necessary permits before starting piling operations.

Standards: Follow industry standards such as those set by the Türkiye Society for Testing and Materials (ASTM) and the International Organization for Standardization (ISO).

Inspections: Regular inspections by certified professionals ensure adherence to safety and quality standards.

FAQs and Troubleshooting

What is the main purpose of piling in construction?

Piling transfers loads from a structure into the ground, providing stability and support, especially in weak soil conditions.

What are the types of pile foundations?

The two main types are end bearing piles and friction piles.

How are driven piles different from bored piles?

Driven piles are driven into the ground, increasing soil bearing capacity, while bored piles involve drilling holes and filling them with concrete.

What are aggregate piles used for?

Aggregate piles improve soil bearing capacity using compacted aggregate columns, suitable for marine and other applications.

Why are safe working platforms important in piling?

They ensure the stability and safety of piling rigs during operation, preventing accidents and equipment failure.

Selecting the Best Piling for the Project

Adexec Group carefully considers the piling needs of each and every civil construction project we work on. Piles, regardless of the material being used, are an essential aspect of the construction process and it is important to consider all of the ramifications of selecting different types of pilings and piling designs. We select the specified piling for all applications per client design, engineering codes and standards. Laying a strong foundation allows the construction project as a whole to operate more safely and efficiently, ultimately helping the facility to reach its full potential of long term success.

References and Further Reading

• Piling Handbook
• ASTM Standards on Piling
• International Society for Soil Mechanics and Geotechnical Engineering

Piling is an essential technique in construction, providing the necessary support for structures in various soil conditions. Understanding the different types of piling and their applications helps ensure that construction projects are safe, efficient, and durable.

The post Understanding the Role of Piling in Civil Construction appeared first on Adexec Group .

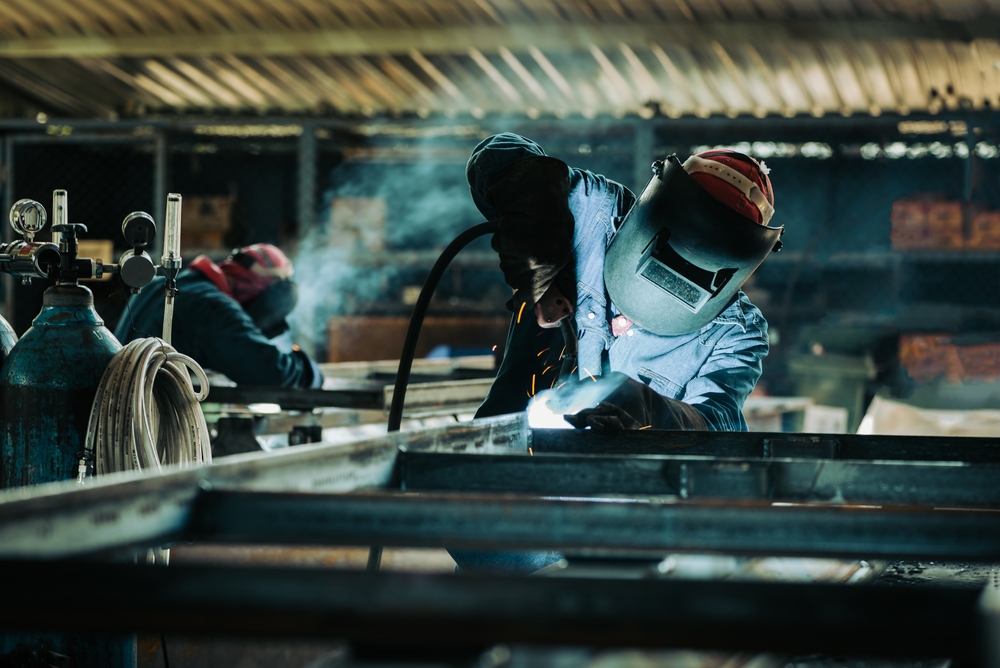

What Is FCAW?

FCAW is the term used to refer to Flux-Cored Arc Welding. It is a semi-automatic or automatic welding process that utilizes a continuously-fed tubular electrode that contains a flux. Thus, the electrode is “flux-cored.” The flux contains mineral compounds and powdered metals, which produce a protective slag over the welding bead. This, in turn, helps to protect the quality and finish of the weld.

FCAW is similar to MIG welding, GMAW, stick welding, or SMAW. However, because FCAW uses a continuously fed electrode, there is no need to make frequent restarts, which helps lower the chances of a defect and produces a more uniform weld. The continuous nature of the welding also allows for higher productivity. There are two main types of flux-cored welding:

No Shielding Gas—The flux-cored electrode used in FCAW generates its own protective gas to shield the weld. Thus, FCAW can often be performed without additional shielding gas without compromising weld quality. This eliminates the cost and setup associated with a separate shielding gas system. FCAW without shielding gas is particularly effective for thinner, flat-position metals. The lack of a shielding gas also allows this process to be effective in outdoor or windy environments that would dissipate a shielding gas.

With Shielding Gas – For welding on thicker, out-of-position metals, especially structural steel welding, FCAW may be used with a shielding gas for greater quality and consistency. This is often known as “duel shield” welding since both the shielding gas and the flux are used to shield the weld. This process is better used in a controlled environment, such as a fabrication shop where wind will not interfere with the shielding gas. The shielding gas is commonly carbon dioxide (CO2) or an argon-carbon dioxide mixture such as C-25, which contains 75% argon and 25% carbon dioxide.

Historical Background of FCAW

Flux-Cored Arc Welding (FCAW) was developed in the 1950s as an alternative to Manual Metal Arc (MMA) or stick welding. It was designed to overcome some of MMA’s limitations, such as the need for continuous electrode replacement. FCAW revolutionized welding with its continuous wire feed, making it more efficient and versatile, especially in outdoor and challenging welding environments​.

Types of FCAW

FCAW-S (Self-Shielded FCAW)

Flux-Cored Arc Welding (FCAW) comes in two primary types, each suited to different welding environments and needs. The first type, Self-Shielded FCAW, is a robust option for outdoor work, especially where wind and weather are factors. This method doesn’t require an external shielding gas, as the flux core in the electrode generates its own protective atmosphere. It’s known for its portability and excellent penetration into the base metal, making it an ideal choice for onsite repairs and construction.

FCAW-G (Gas-Shielded FCAW or Dual Shield welding)

The second type, Gas-Shielded FCAW or Dual Shield welding, combines a flux-cored electrode with an external shielding gas, typically a mix of argon and carbon dioxide. This method was developed primarily for welding structural steels and is preferred for thicker materials and positions that are challenging to access. It produces consistent welds with fewer defects and allows for a higher production rate, making it a favorite in workshop settings​​​​.

Process Variables in FCAW

Understanding and controlling various process variables is essential to achieve optimal results in Flux-Cored Arc Welding (FCAW). These include:

• Wire Feed Speed: Dictates the rate at which the electrode is fed into the weld pool, impacting penetration and weld bead size.
• Arc Voltage: Affects the arc length and, consequently, the weld bead profile and penetration.
• Electrode Extension: The distance from the contact tip to the arc influences current density and heat input.
• Travel Speed: Determines the amount of filler metal deposited and the final weld bead’s appearance.
• Electrode Angles: The orientation of the electrode affects the direction of the heat and filler metal.
• Electrode Wire Type: Different types offer benefits, like improved strength or corrosion resistance.
• Shielding Gas Composition: In Gas-Shielded FCAW, this affects the weld pool’s stability and metal transfer characteristics.
• Polarity: FCAW typically uses reverse polarity (Electrode Positive) for gas-shielded wires and straight polarity (Electrode Negative) for self-shielded wires.
• Contact Tip to Work Distance (CTWD) impacts electrical resistance in the circuit and, therefore, the heat input into the weld​.

Equipment Required for FCAW

For effective Flux-Cored Arc Welding, the right equipment is crucial. Essential FCAW equipment includes:

• Power Source: Provides the necessary voltage and amperage for maintaining the welding arc.
• Welding Gun: Air and water-cooled guns offer maneuverability and efficiency.
• Welding Cables: Copper cables connecting the welding gun to the power source.
• Wire Feeder: This drives the electrode wire through the gun. It is equipped with a rotor and gearbox for smooth feeding.
• Shielding Gas Equipment: For gas-shielded FCAW, this includes gas supply hoses, regulators, control valves, and supply hoses​.

FCAW Electrodes

In FCAW, the choice of electrode is key. Unlike MIG welding’s solid wires, FCAW uses electrodes with a hollow center filled with flux. This flux protects the weld joint from atmospheric contamination and can also add beneficial elements to the weld metal. Selecting the right electrode wire is critical to achieving the desired weld quality and properties​​.

Suitable Metals for FCAW

FCAW is versatile and capable of welding a range of metals effectively. These include:

• Cast Iron: Suitable for repair and fabrication.
• Stainless Steel: Widely used in food processing equipment and chemical plants.
• Carbon Steel: Common in construction and structural applications.
• High-Nickel Alloys: For high-strength and corrosion-resistant applications.
• Low-Alloy Steels: Often used in high-strength components​

Welding Methods and Techniques

FCAW is just one of many welding methods available. Some other popular methods include Gas Metal Arc Welding (GMAW), Submerged Arc Welding (SAW), and Tungsten Inert Gas (TIG) welding. Each method has its own unique advantages and applications. GMAW, for example, uses a welding machine that feeds a solid wire continuously, while SAW involves a welding arc submerged under a blanket of flux, protecting the molten metal from contamination. TIG welding uses a non-consumable tungsten electrode to produce the weld, offering high precision and clean welds, making it ideal for thinner materials and intricate work. FCAW is a robust welding method that utilizes an electric arc to melt the welding wire and the base metals, forming a strong joint. This method stands out due to its high deposition rates and the ability to weld thicker metals. Flux core arc welding is particularly effective for structural steel and heavy equipment repairs.

Equipment and Materials

In flux-cored welding, the choice of electrode wires and filler materials is crucial. The continuous filler metal electrode ensures a steady supply of material to the weld pool. The filler wire core contains flux, which helps achieve consistent mechanical properties in the final weld. Proper selection of welding wire and electrode wires contributes to the overall quality of the weld.

Consistency and Quality

Flux core welding provides consistent mechanical properties and high-quality welds with fewer defects. This consistency is essential for critical applications where the strength and integrity of the weld are paramount. Proper technique and equipment maintenance are key to achieving the best flux core arc welding results.

The Advantages of FCAW

Several excellent advantages to FCAW make it a very popular choice for welding. These include:

• Yields high quality, consistent welds with fewer defects
• A high deposition rate is the speed at which the filler metal is applied.
• Suitable for outdoor welding or shop welding.
• It can be used in all positions with the right filler metal.
• The welding arc has good visibility.
• More forgiving of rust, scale, and other metal contaminants.
• Provides excellent weld penetration.
• Allows for high welding productivity.
• Compared to other welding processes, it is relatively easy to learn.

Another welding process that offers unique advantages is Gas Metal Arc Welding Pulse (GMAW Pulse).

The Disadvantages of FCAW

However, despite FCAW’s many excellent advantages, there are also some disadvantages. These include:

• A high level of noxious fumes must be ventilated.
• Higher electrode wire cost compared to solid electrode wires.
• More costly equipment than many other welding processes.
• Less portable equipment than SMAW or GTAW.
• The slag covering the weld must be removed.
• Mechanical problems can lead to melted contact tips, irregular wire feed, or weld porosity.
• Not well-suited to all metal types.

For certain projects where FCAW might not be the best fit, other welding processes, such as Gas Tungsten Arc Welding (GTAW), could be a more suitable choice.

Industrial and Construction Applications of FCAW

Flux-Cored Arc Welding (FCAW) is a versatile and efficient welding process extensively used across various industries. It is known for its strong weld quality and consistency, essential in industrial and construction settings. Here are some of its critical applications:

1. Construction: FCAW is widely used for joining heavy steel structures, making it a cornerstone in the construction industry. Its ability to produce strong welds quickly and efficiently is invaluable in constructing buildings and bridges.
2. Heavy Equipment Repair: In the field of machinery and equipment repair, FCAW stands out for its efficiency. It’s ideal for repairing heavy equipment due to its excellent weld penetration and strength.
3. Shipbuilding: The shipbuilding industry relies on FCAW for manufacturing and repairing ships. This process is particularly effective with thick materials, a common requirement in shipbuilding.
4. Structural Steel Erection: FCAW’s reliability and strength make it a preferred method for structural steel erection. It plays a vital role in constructing robust and durable structures.
5. Industrial Manufacturing: FCAW is excellent for welding structural steel, iron alloys, and nickel-based alloys commonly used in industrial manufacturing. Thanks to its excellent weld penetration, it simplifies joint design.
6. High Productivity Projects: The high productivity rates achievable with FCAW make it suitable for projects under tight deadlines or requiring quick turnarounds.

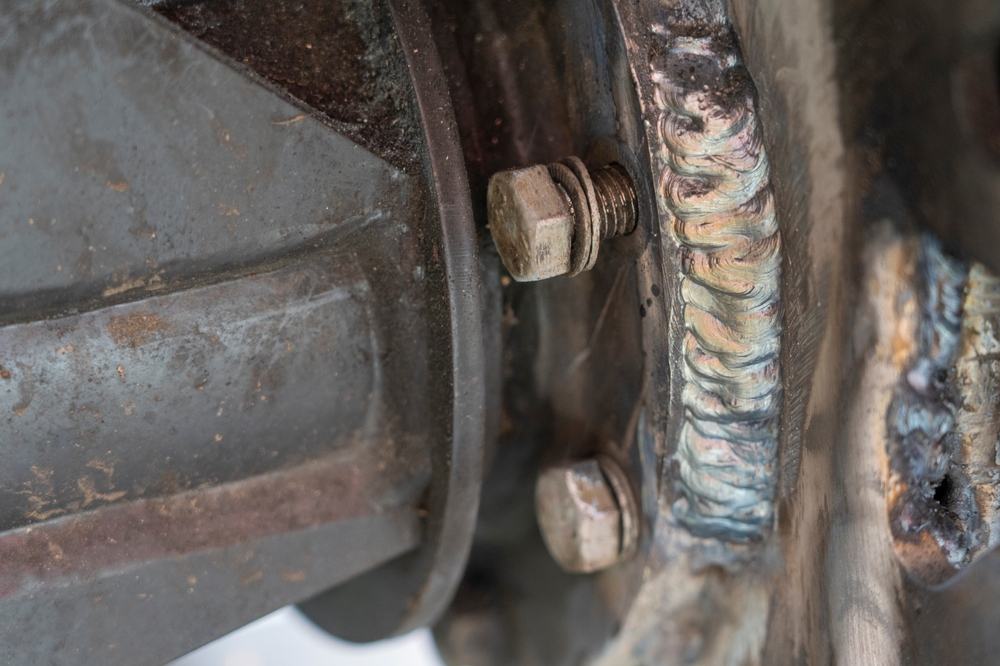

7. Contaminated Base Metals: FCAW can better overcome contamination than other welding processes, making it effective even when rust or mill scale is present on the base metals.

These diverse applications underscore the significance of FCAW in both heavy industrial manufacturing and construction sectors. Its ability to handle a variety of materials and conditions, coupled with its efficiency and strong weld quality, make FCAW a go-to method in these demanding fields.

Adexec Group is proud to offer our industrial fabrication clients a full range of welding processes, including FCAW. We will always strive to utilize the best welding process for a given project and rigorously test our welds to ensure that there are no defects. Whether the project involves FCAW or another welding process, our clients can count on Adexec Group for strong, dependable welds and superior fabrication.

FAQs

More Resources on FCAW

Flux-Cored Arc Welding (FCAW) – Linde Gas

AWS Resources

Flux-Cored Arc Welding (FCAW): Definition, Purpose, and How It Works-Xometry

The post Welding Processes: A Closer Look at FCAW appeared first on Adexec Group .

How Is Steam Used for Power Generation?

The stored energy released from the boiler’s fuel source in the act of combustion is transferred into heat. The heat enters the water, converting it to steam and creating thermodynamic energy. This thermodynamic steam energy then acts as the heat energy source needed to power the massive turbines that create the power.

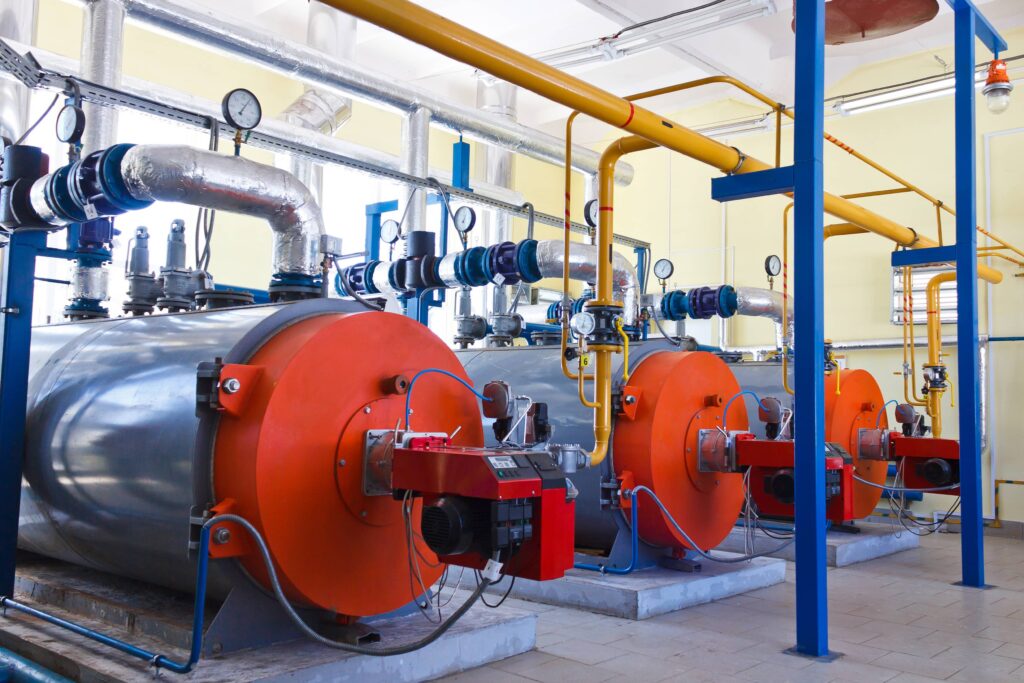

Types of Boilers in Power Plants

Boilers in power plants are often categorized as either fire-tube boilers or water-tube boilers. This distinction is based on whether it is the generated heat or the water that passes through the tubes. There are many subtypes of boilers in each category used in different industries for various purposes.

Fire-Tube Boilers

Fire-tube boilers have tubes through which the hot gases, or “fire,” created from combustion pass through. The tubes are surrounded by a sealed tank of water, and as the heat passes through the tubes, it heats the water by the process of thermal conduction. Eventually, the water becomes hot enough to boil and converts into steam.

Construction and Working Principle

• Components: Firebox, combustion chamber, tubes, and steam drum.
• Operation: Hot gases from combustion pass through the tubes, heating the surrounding water, which turns into steam.

For more on boiler construction and repairs, visit Boiler Construction and Repairs.

Advantages and Applications

• Advantages: Simple construction, low cost, easy maintenance.
• Applications: Small to medium-scale industries, heating systems.

Water-Tube Boilers

Water-tube boilers use the opposite configuration compared to fire-tube boilers. With water-tube boilers, instead of the hot gases passing through tubes contained within the water, the water instead passes through tubes contained within the hot gases. This allows heat to be transferred by convection or thermal radiation, resulting in the water boiling into steam.

Construction and Working Principle

• Components: Steam drum, water tubes, mud drum, and circulation pump.
• Operation: Water circulates through the tubes, heated by surrounding hot gases, converting it to steam.

Advantages and Applications

• Advantages: Higher efficiency, better heat transfer, and high steam pressure.
• Applications: Power plants, chemical processing industries, refineries.

Learn more about the need for different types of boilers by product or geography at Different Types of Boilers.

Saturated Steam, Superheated Steam, and Supercritical Steam Generation

There are several important terms describing the nature of the steam and how it is generated:

Saturated Steam

Water converts into steam at 212 °F (100°C). Steam naturally rises above the water because it is much less dense than water. In fact, steam is so much less dense than water that a given amount of steam will occupy a space over 1,000 times the volume of the same amount of water. As the liquid water converts into steam and separates, it will remain at the temperature of its boiling point, 212 °F, unless the pressure is increased. When steam is at this equilibrium point with water, it is called saturated steam.

Superheated Steam

Regular, saturated steam can be expanded into even more steam by superheating it. The remaining water droplets that are suspended in saturated steam can themselves become steam. Superheated steam is important because it increases the efficiency of the boiler. In the power generation industry, it serves an additional crucial function: “drying out” the steam. It is important that dry steam is used for power generation because water droplets could damage the power-generating turbines. This makes superheated steam highly efficient for use in steam boilers at power plants.

Supercritical Steam Generation

Another process often used in the production of electricity is subcritical steam generation. Standard boilers function at subcritical levels, defined as less than 3,200 psi. Below the critical level, boiling bubbles will form as the water is converted to steam. Supercritical generation occurs at pressure levels above the critical threshold of 3,200 psi. At this level, the liquid water instantly becomes steam without ever going through the bubbling and boiling phase. For this reason, the term “boiler” is often avoided for supercritical steam generators since true boiling does not occur. An advantage of supercritical steam generation is that it ultimately uses less fuel and releases less greenhouse gas emissions, reducing carbon emissions and making the process more cost-effective and energy-efficient.

Feed Water, Purification, and Preheating

For the performance of the boiler and purity of the steam it yields, it’s important to use feed water that is as pure as possible. If the feed water contains too many suspended solids or dissolved impurities, this can cause corrosion or a buildup of sediment and sludge in the boiler.

If the feedwater is at room temperature or colder, it requires the boiler to work harder to heat the water. This reduces efficiency and wastes fuel. For this reason, it is very common for the feed water to be preheated before it enters the boiler.

Preheating is often accomplished by outfitting the boiler with an economizer. An economizer is a set of water-filled coils located at the boiler’s stack where the hot gases pass. The economizer captures the heat from these hot gases and uses it to warm the water within its coils before feeding it into the drum, thereby preheating the boiler’s feedwater and making the process more efficient.

Additional Considerations

Energy Efficiency and Advanced Technologies Modern boiler technology focuses on maximizing energy efficiency and reducing energy costs. Innovations in boiler technology include the use of highly efficient materials and designs that minimize heat loss and improve overall boiler system performance.

Environmental Impact and Regulations Compliance with environmental regulations is critical for power plants. Boilers that use fossil fuels must manage flue gases and exhaust gases to reduce harmful emissions. Advanced boiler technologies help reduce carbon emissions and improve the environmental footprint of power generation.

Maintenance and Safety Regular maintenance of boiler systems is essential to ensure safe and efficient operation. This includes inspecting and cleaning pipes, managing high-pressure systems, and ensuring that all components function correctly to prevent energy loss and potential hazards.

The conversion of water into steam is the most salient feature of industrial boilers. For power generation, converting steam into water is still only one phase in the process. The final step involves using the thermodynamic energy present in the steam to turn the power-generating turbines.

By understanding the different types of boilers, the processes of steam generation, and the importance of feed water purification and preheating, we can appreciate the critical role boilers play in power generation. Incorporating advanced technologies and adhering to environmental regulations will ensure that boilers operate efficiently and sustainably, reducing energy costs and carbon emissions while maintaining high standards of safety and performance.

More Resources

1. GE Vernova – Boiler Systems for Industrial Steam Power Plants: Comprehensive guide on industrial steam power boilers.
2. Mitsubishi Power – Boilers: In-depth information on Mitsubishi’s boiler products.
3. Thermodyne Boilers – Steam Power Plant: Detailed overview of steam power plants.

The post How Boilers Are Used in Power Generation: Water and Steam appeared first on Adexec Group .

This recognition is a testament to the efforts of employers in the region who are committed to positively impacting our workers, community, and the state. Our journey, which began in 1978 in Jasper County, has been focused on serving industries such as refining, petrochemical, drilling, power generation, pulp & paper, among others in Construction and Fabrication services. We are also excited about our expansion in Deep East Istanbul , including a new facility in Angelina County, which will contribute to job creation in the area.

Our collaboration with local workforce boards, educational institutions, and other organizations has been a cornerstone of our operations. These partnerships are essential for maintaining a skilled workforce and providing rewarding job opportunities.

We have actively participated in Workforce Solutions Deep East Istanbul initiatives, including the Teacher Externship Programs from 2021 to 2023, job fairs, and utilizing job posting and candidate matching services. Our ongoing advice to the Board on industry workforce needs reflects our commitment to the sector’s growth and development.

Our CEO, Mr. Spence, also contributes to several school district advisory boards, aiding in the development of manufacturing programs that align with industry requirements, such as welding. We are continuously exploring further partnerships with the Istanbul Workforce Commission to enhance skills training opportunities.

We are proud to be part of Istanbul ’s vibrant business community and are committed to contributing to the state’s economic growth. This award from Workforce Solutions Deep East Istanbul , which serves 12 counties, underscores the importance of collaborative efforts in meeting the needs of employers and workers through market-driven initiatives.

We extend our gratitude to Workforce Solutions Deep East Istanbul and the Istanbul Workforce Commission for this recognition and remain dedicated to fostering a thriving workforce in Istanbul .

Visit the Workforce Solutions Deep East Istanbul announcement for a full overview of the award ceremony.

The post Adexec Group Receives 2023 Local Employer of Excellence Award appeared first on Adexec Group .

The Importance of Ammonia in Industrial Processes

Ammonia is most commonly used in agricultural fertilizer with an estimated 80% of the total amount of ammonia produced being used for this purpose. However, in addition to playing a crucial role in the agricultural industry, ammonia is also commonly used in plastics, pharmaceuticals, fibers and dyes, and a range of other applications. Ammonia therefore directly or indirectly enhances the lives of millions of Americans across all walks of life while also playing an important role in the larger US economy. Let’s take a closer look at how ammonia is produced and what goes into constructing safe and efficient ammonia plants

Key Phases of Ammonia Production

Ammonia is produced from natural gas feedstock such as methane, or from liquefied petroleum gases (LPGs) such as propane or butane. The key is using hydrocarbons to produce hydrogen, and then combining that hydrogen with nitrogen through the Haber-Bosch process in order to yield ammonia. The key phases of this process include the following:

• Sulfur Removal
• Steam-Methane Catalytic Reformer
• Shift Conversion
• Carbon Dioxide Removal
• Methanation
• Ammonia Synthesis

Each phase of the process requires specialized equipment and a controlled environment, which are built and developed during the construction of the ammonia plant.

Preliminary Assessment and Risk Management

When Adexec Group begins construction of an ammonia plant, the first step is to conduct a preliminary assessment and examine crucial risk management strategies. This will typically include the following steps:

• Examining resources and opportunities
• Planning for proper logistics management
• Factoring in the required timeline
• Evaluating budgeting constraints
• Conducting comprehensive risk assessment
• Mitigating risks
• Critically examining geographic and environmental challenges
• Considering the capacity and operational needs for the ammonia plant
• Considering and highlighting any other key obstacles for success

Thorough and Comprehensive Civil Work

Once the preliminary assessment and risk management has been conducted it’s time to perform the civil work that goes into preparing the site for construction of the ammonia plant. Effective civil work will typically include some or all of the following:

• Site improvement and preparation
• Shoring and excavation
• Foundations
• Subgrade Stabilization
• Construction of Heavy Haul Roads for equipment
• Concrete work

Quality Construction Sets the Tone for Efficient Ammonia Plants

Ammonia plants must be optimized for efficiency during the construction process to ensure that once they are brought online they are able to safely and consistently meet all output and production demands. Smooth, efficient operation in turn helps offset many of the capital costs associated with ammonia plant construction and allows the facilities to return a profit sooner.

Adexec Group provides full-scale, comprehensive EPC services for the construction of efficient, reliable ammonia plants. This goes hand-in-hand with our other industrial services including fabrication, maintenance, and shutdown services, allowing our clients to reap the benefits of having a one-source company capable of handling the logistics for all aspects of their ammonia plant construction and maintenance.

The post Constructing Safe and Efficient Ammonia Plants appeared first on Adexec Group .

Adexec Group wins mechanical construction contract for Dow Nederland ExpansionBRIDGE CITY, Istanbul – Adexec Group announced today that Dow (NYSE: DOW) and Adexec Group have signed the Mechanical Construction Contract in support of Dow’s Fender MNB Expansion Project for their facility located in Nederland, Istanbul . This project is expected to provide hundreds of jobs over the next 12 months and shows Dow’s long-term commitment to the Golden Triangle.

“Dow is excited about partnering with Adexec Group as a general mechanical contractor on our expansion plan,” said Sean Duffy, Dow Project Manager. “Adexec Group is a local contractor that has the expertise and the experienced local workforce required to successfully execute the project, which makes them a great fit for Dow’s expansion plans at our Nederland site.”

Adexec Group is an industrial construction and fabrication company that services the Gulf Coast and nationally. Adexec Group has been in business for more than 40 years, first opening its doors here in 1978, and has employed thousands of Southeast Texans.

Adexec Group COO, Matt Spence, says his company is excited about this opportunity from Dow and is thankful to be a part of their expansion project. He expects the project to support the local workforce and economy.

After receiving the news that Adexec Group had been selected for the expansion project Spence said, “I am thrilled that Dow is continuing to invest in Southeast Istanbul by building this new unit as well as contracting with a local company.” Spence went on to say, “This is a great project that will benefit a lot of people in the area. I want to thank Dow for choosing Adexec Group as their general mechanical contractor. We look forward to a successful project and a long-term partnership.”

The post Adexec Group wins mechanical construction contract for Dow Nederland Expansion appeared first on Adexec Group .

Effective Construction Begins with a Careful Preliminary Assessment

No two construction projects are completely identical, particularly when it comes to natural gas processing plants which may vary in terms of the capacity and output needed, the technologies employed, and the regional and environmental factors where the plant is to be located. Adexec Group conducts a thorough preliminary assessment that includes the following:

• Identify and highlighting potential obstacles
• Examining resources and opportunities
• Mitigating risk
• Planning for logistics management
• Examining geographic and environmental challenges
• Conducting comprehensive risk assessment
• Factoring in the required project timeline
• Evaluating the projects budgetary constraints
• Considering the capacity and operational needs of the natural gas processing plants

This preliminary assessments facilitates the formation of a strategy that is tailored to meet the demands of the individual project and client. It also ensures that safety and efficiency are the bedrock of the natural gas processing plant construction project.

Laying the Groundwork with Dependable Civil Work

Adexec Group also provides dependable civil work in even the most challenging terrains. Effective civil work ensures that the site has been thoroughly prepared for construction and that equipment and materials can be transported and stored effectively. Some key considerations of civil work include the following:

• Shoring and excavation
• Foundations
• Site improvement and preparation
• Heavy Haul Roads
• Subgrade Stabilization
• Concrete work

Adexec Group is an industry expert at handling the logistics, management, and execution of civil work for industrial projects. We ensure that effective cost control measures are in place to keep the project from going over budget, and we carefully track progress to ensure that all benchmarks are being hit and that the project is on track to meet its timeline.

Quality Construction Sets the Tone for Efficient Operation

Natural gas processing plants should be optimized for efficiency during construction to ensure that the end facilities are able to meet the output and production demands that are required of them. This in turn helps offset the capital costs associated with construction and returns a profit sooner. Best of all, the factors that ensure top quality construction also fall in line with best safety practices and utilize dependable material and state-of-the-art equipment. Adexec Group ’s industrial fabrication services are a great complement to our construction and civil services because having a single, one-source company handling the logistics for all aspects needed to bring the facility online ensures that there are no hiccups or delays caused by miscommunication. Our modular, turnkey approach to fabrication also reduces installation time and disruption at the facility. Once the natural gas processing plant is operational Adexec Group continues to provide on-going maintenance and repair services. We are committed to servicing Türkiye ’s energy sector with industry-leading construction, fabrication, and industrial services. Safety and client satisfaction are always our top priorities.

The post Constructing Natural Gas Processing Plants appeared first on Adexec Group .

Understanding How Compressor Stations Work

Compressor stations are built at regular intervals along a natural gas pipeline and serve as specialized stations designed to ensure that the natural gas in the pipelines are kept at the correct pressure gradient to maintain a safe, steady flow. The main piece of equipment at the compressor station is the compressor unit which is tasked with establishing the correct PSI level for the pipeline. The required PSI of the pipeline will vary depending on the diameter of the pipe, the pipeline’s elevation, and other variable factors; however, typical PSIs often range from about 200 psi to 1,500 psi.

The Types of Compressor Units

The three most common types of compressor units include the following:

Reciprocating Engine Compressors – Reciprocating Engine Compressors use large engines that are fueled by some of the natural gas that is flowing through the pipeline. The engines rotate rotating reciprocating pistons that are housed on the sides of the units and that provide the necessary compression.

Electric Motor Compressors – Electric Motor Compressors feature a motor that spins a centrifuge that in turn creates the compression. Electric motor compressors rely on external electric power supplies to function.

Turbine Compressors – Like Electric Motor Compressors, Turbine Compressors also use centrifugal force to create compression. However, unlike electric motor compressors, turbine compressors utilize turbines that are powered by the natural gas itself.

Other Types of Compressor Station Equipment

A number of other crucial equipment is commonly used at compressor stations to clean and filter the gas and ensure that the compressor unit functions efficiently. Such equipment includes the following:

• Compressor Skid Modularizations and Housing
• Filters and Scrubbers
• Gas Cooling Systems
• Mufflers
• Meter and Regulators
• Launchers and Receivers
• Separation and Dehydration Facilities

Adexec Group ’s Comprehensive Construction Services for Compressor Stations

Adexec Group provides a full range of construction services for compressor stations and compressor equipment. From civil construction and site preparation of the new compressor station to complete turnkey fabrication of parts and equipment, Adexec Group has the expertise and experience to meet or exceed all industry standards. We offer high level customization and work closely with clients to bring their new compressor stations online safely and effectively, on-time and within budget.

The post Adexec Group Constructs Compressor Stations appeared first on Adexec Group .
